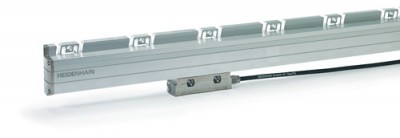

LS 187 - Heidenhain Glass Scale

LS 186
  • Incremental Linear Encoder for Measuring Steps of 1 µm and 0.5 µm
  • Defined thermal behavior
  • High vibration rating
  • Horizontal mounting possible
  • With single field scanning
  •
    Heidenhain LS 187

    Measuring Methods Incremental
    Measuring standard Glass scale with DIADUR graduation
    Thermal expansion coefficient αtherm ≈ 8 x 10-6 K-1
    Accuracy grade
    Measuring lengths (ML) in mm
    Incremental signals 1 VSS
    Grating period 20 µm
    Signal period 20 µm
    Reference marks with
    Version
    Selectable with magnets every 50 mm; Standard setting: 1 reference mark in the center
    Cutoff frequency -3dB ≥ 150 kHz
    Power supply 5V ±5%/< 120 mA
    Electrical connection Sep. adapter cable (1 m/3 m/6 m/9 m) connectable to mounting block
    Max. cable length 150 m
    Max. traversing speed 120 m/min
    Required moving force ≤ 4 N
    Vibration (55 to 2000 Hz) ≤ 200 m/s² (EN 60068-2-6)
    Shock (11 ms) ≤ 400 m/s² (EN 60068-2-27)
    Acceleration ≤ 60 m/s² in measuring direction
    Operating temperature 0 to 50 °C
    Protection (IEC 60529) IP 53 when installed according to the mounting instructions
    IP 64 if compressed air is connected
    Weight 0.4 kg + 2.3 kg/m measuring length







    Mounting Instructions for the Heidenhain LS 187
