Ultrasonic (Non-Desctructive) Portable Hardness Tester MET U1A     Phase II is also the largest supplier of portable hardness testers in the North American market today

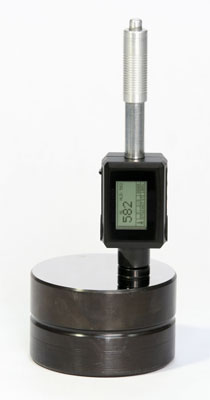

The PHASE II hardness tester, Model No. PHT-2700 is an advanced integrated hardness tester distinguished by its very compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry.
Ultrasonic Portable Hardness Tester
The PHT-2700 hardness tester combines the universal impact device D and a data processor in a single unit. It automatically computes all Vickers, Brinell, Rockwell and Shore hardness values. RS232 output enables this new model to print any of it’s memory from up to 2000 locations. The impact direction can be set so that the accurate values can be achieved at any angle, even upside down! Statistical mean value is automatically provided.

The measuring method of the PHT-2700 is defined as “the quotient of the impact body’s rebound velocity over its impact velocity”. Optional accessories include various support rings to meet the requirements of specialized convex or concave applications.



Dimensions: 6.10” x  2.36” x  1.49”  (155 X 60 X 38mm)
Impact Device: D
Impact Energy: 8 Ft-Lbs   (11nmm)
Test Tip: Tungsten Carbide
Measuring Accuracy: +- 0.8% (Corresponding To +- 1 Hrc At Hrc=58)
Max. Hardness of Sample: 980hv
Weight: 0.48lb   (220g)
Impact Dimension: Any Angle
Operating Temperature: 32  To 122 Degrees F  (0 To 50 Degrees C.)
Min. Weight of Sample: 11 lbs / 5kg
Min. Radius of Curved Surface: 1.2in  (30mm)  (With Support Rings:11mm)
Power: 2- AAA Batteries (supplied)


MATERIAL

HRC

HRB

HB HV HS
STEEL & CAST STEEL

20-68

60-100

93-674 83-976 32-100
COLD TOOL STEEL 20-67     80-898
STAINLESS STELL

20-62

46-100

85-655 85-802
GREY CAST IRON     93-334
NODULAR CAST IRON     131-387
CAST ALUMINUM ALLOYS     27-159
COPPER/ZINC ALLOYS (BRASS)   13-95 40-173
CuAI/CuSn ALLOYS (BRONZE)     60-290
WRAUGHT COPPER ALLOYS     45-315
