Fowler - Sylvac "Z" Cal

New dimensions in vertical measuring...

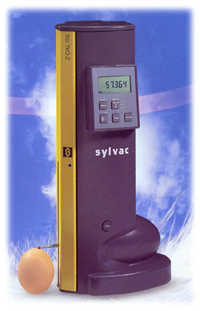

Fowler introduces the Z-Cal from Sylvac of Switzerland. Total innovation in it's design, the Z-Cal is light and flexible, and easily measures a total range of parts from metals to plastics including fragile and thin walled items.

Sylvac's New Patented Motorized Carriage System allows extremely easy measurement and exceptional repeatability. It's probe speed is proportional to finger pressure on the control buttons. Facility for height, slot, diameter and centerline distances are included standard in the Z-Cal unit.

A simple 5 button keypad can control all the measuring functions of the Z-Cal unit. Simply depress the key of choice and measure. No complicated programming is necessary. The Z-Cal is supplied with a standard 3mm ruby probe, and a choice of accessory kits are available.

Specifications: 54-930-150 54-930-300
Measuring range 0-150mm / 0-6" 0-300mm / 0-12"
Resolution 0.01/0.001mm / 0.0005"/0.00005" 0.01/0.001mm / 0.0005"/0.00005"
Accuracy 4um / 0.00016" 6um / 0.00024"
Repeatability 2um / 0.00008" (2s) 2um / 0.00008" (2s)
Operational speed 0.15 m/sec - 6"/sec
max (variable)
0.15 m/sec - 6"/sec
max (variable)
Measuring force 0.3 N / 1 ounce 0.3 N / 1 ounce
Operational time 40 hours (charged) 40 hours (charged)
Weight 4.3 kg (1.5 Lbs) 5.3 kg (1.5 Lbs)
Data output RS 232 - Bidirectional RS 232 - Bidirectional
