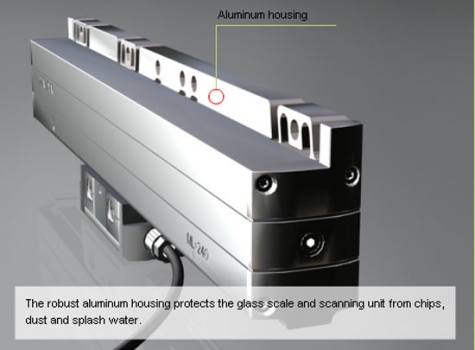

Sealed linear encoders from HEIDENHAIN are protected from dust, chips and splash fluids and are ideal for operation on machine tools. An aluminum housing and elastic sealing lips protect the glass scale, scanning carriage and guideway from chips, swarf, dirt and splashwater The Glass scale's scanning carriage travels in a low-friction guide within the scale unit. It is connected to the external mounting block by a coupling that compensates unavoidable misalignment between the scale and the machine guideways.

Sealed linear encoders or glass scales, are available with full-size scale housings for high resistance to vibration up to 30 m measuring length, as well as slimline scale housing for limited installation space up to 1240 mm measuring length; with mounting spar up to 2040 mm









Sealed Linear Glass Scales, Tape Scales and Encoders

Full Body Scale Housings
Linear encoders with full-size scale housing for numerically controlled machine tools

Series Application Measuring lengths
LC 100 For absolute position measurement 140 mm to 4240 mm
LF 100 For very high repeatability 140 mm to 3040 mm
LS 100 For NC machines 140 mm to 3040 mm
LB 300 For large measuring lengths 440 mm to 30040 mm

For manually operated machine tools or universal applications

Series Application Measuring lengths
LS 600 For simple applications 170 mm to 3040 mm
LS 1600 For incremental measurement with integrated rollerguide 70 mm to470 mm

Linear encoders with slimline scale housing
 For numerically controlled machine tools

Series Application Measuring length
LC 400 For absolute position measurement 70 mm to 2040 mm
LF 400 For very high repeatability 50 mm to 1220 mm
LS 400 For NC machines 70 mm to 2040 mm

For manually operated machine tools or universal applications

Series Application Measuring length
LS 300 For simple applications 70 mm to 1240 mm



Other HEIDENHAIN Encoder Scale Search Options
Search Type Description Additional Notes
All Linear Scales View ALL the current Heidenhain sealed linear scales
Measuring Accuracy Search by the scale's accuracy grade
Incremental Type Search all the Incremental linear scales
Absolute Type Search all the absolute linear scales
  Selection aid: HEIDENHAIN Sealed Linear Encoders  Glass scales 2003 Heidenhain's  Sealed Linear Glass Scales, Tape Scales / Encoders
Sealed Linear Encoders with Single-Field Scanning We Highly Recommend reading the
 literature. It offers some great insight into how a linear scale works.





Linear Scales LS LF LC LB Series
