LB 382 by Heidenhain - Up to 3040 mm measuring length (single-section housing) Incremental linear encoder for measuring steps to 0.1µm
High positioning accuracy and traversing speed using the latest in technology, single-field scanning. Horizontal mounting possible as well.



AMI HOME  |  HEIDENHAIN AWARDS  |  REPAIRS & SERVICE CALLS  |  ABOUT US  |  CONTACT US |  AMI LINE CARD





LB 382 / LB 302 Booklet



LB 382/ 382C

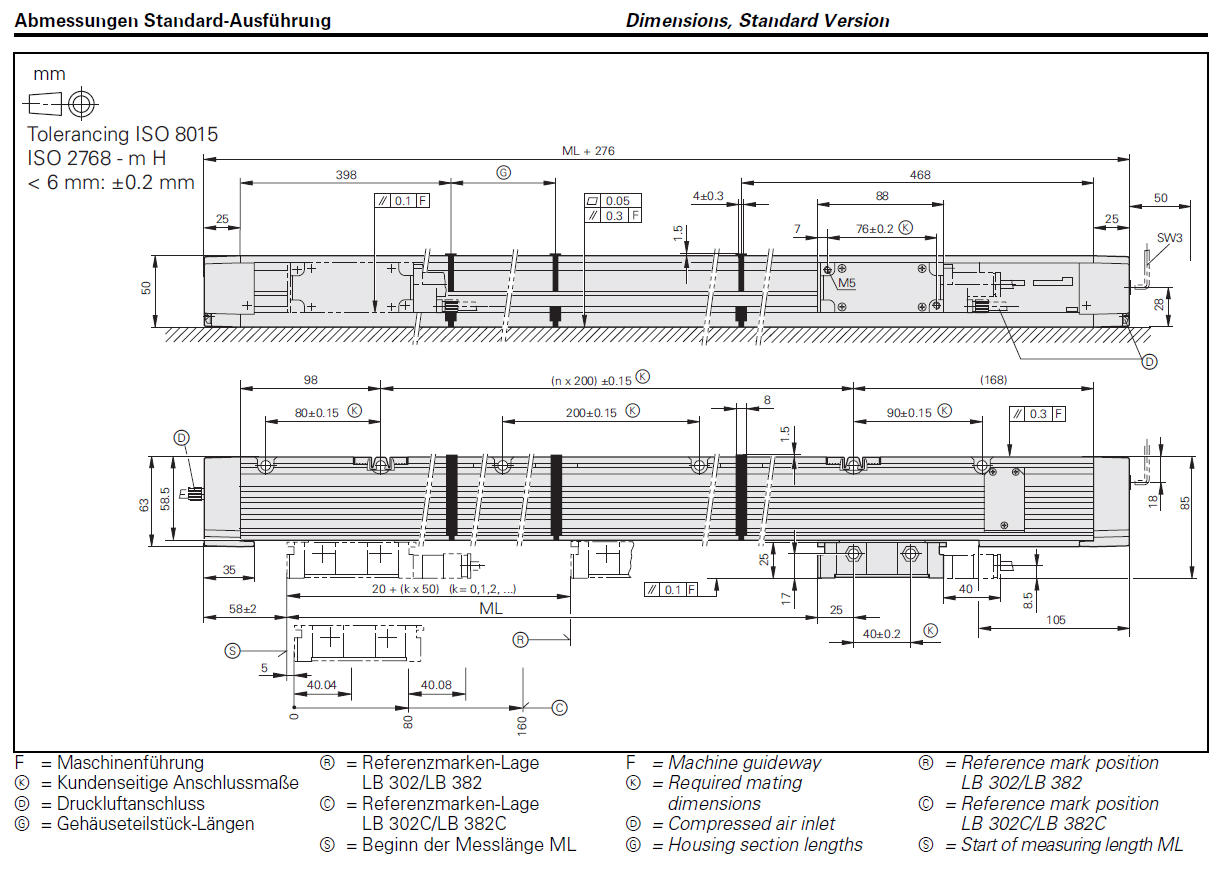

Mounting Dimensions

LB 382 LB 301 Technical Drawings

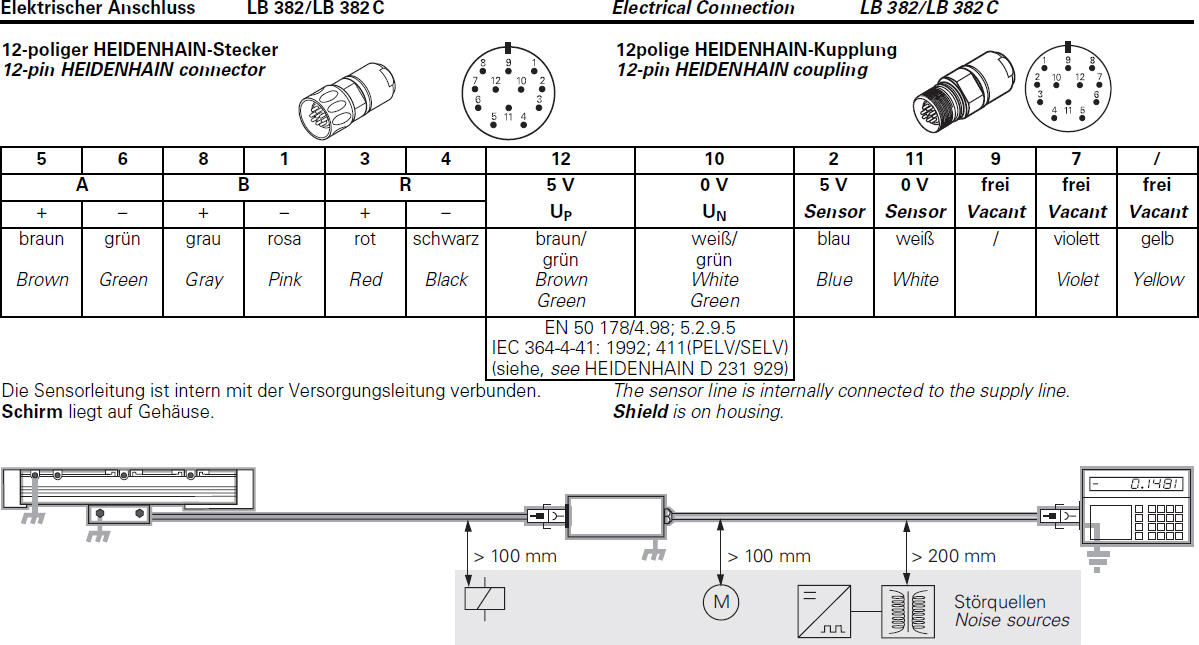

LB 382 and LB 382C
Wire /Pin Diagrams
LB 382 Pin / Wire Diagrams

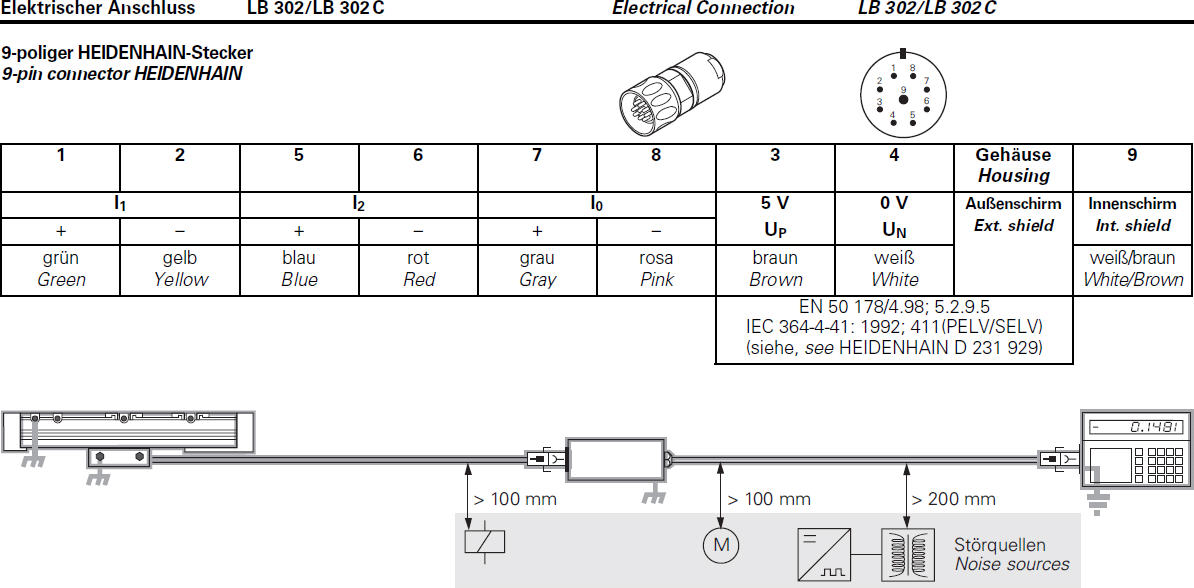

LB 302 and LB 302C
Wire /Pin Diagrams


HEIDENHAIN
Linear Scale Catalog

                 Gekapseltes LMG LB 3xx einteilig


Specifications: LB 382

  Application Numerically controlled machine tools
  Mechanical design Full size
  Measuring procedures Incremental
  Measuring standard Non-rusting steel scale tape with AURODUR graduation
  Thermal expansion coefficient αtherm approx. 10 x 10-6 K-1
  Accuracy grade ± 5 µm
  Measuring lengths (ML) in mm
  Reference marks Selectable with selector plates every 50 mm, standard setting: 1 reference mark in the center
  Incremental signals 1 VSS
  Grating period 40 µm
  Signal period 40 µm
  Cutoff frequency -3dB ≥ 250 kHz
  Max. traversing speed 120 m/min
  Power supply 5 V ± 5 %/< 150 mA
  Electrical connection Cable 3 m/6 m/9 m with M23 coupling
  Max. cable length 100 m
  Required moving force ≤ 15 N
  Vibration 55 to 2000 Hz ≤ 300 m/s² (IEC 60068-2-6)
  Shock (11 ms) ≤ 300 m/s² (EN 60068-2-27)
  Acceleration ≤ 60 m/s² in measuring direction
  Operating temperature 0 to 50 °C
  Protection IEC 60529 IP 53 when installed according to the mounting instructions
IP 64 if compressed air is connected via DA 300
  Weight 1.3 kg + 3.6 kg/m measuring length

            HEIDENHAIN LB 302 LB302 LB 302C
