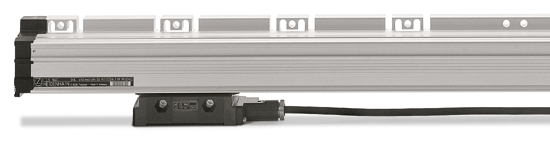

LS 176 - Heidenhain Glass Scale

LS 176
  • Incremental Linear Encoder for Measuring Steps of 1 m and 0.5 m
  • Defined thermal behavior
  • High vibration rating
  • Horizontal mounting possible
  •
    Heidenhain LS 176


    Specifications: LS 176
    Measuring Methods Incremental
    Measuring standard Glass scale with DIADUR graduation
    Thermal expansion coefficient αtherm ≈ 8 x 10-6 K-1
    Accuracy grade
    Measuring lengths (ML) in mm
    Resolution
    Incremental signals TTL
    Grating period 20 m
    Signal period 5-fold interpolation: 4 m
    10-fold interpolation: 2 m
    Reference marks with
    Version
    Selectable with magnets every 50 mm; Standard setting: 1 reference mark in the center
    Power supply 5 V 5 %/< 140 mA (without load)
    Electrical connection Sep. adapter cable (1 m/3 m/6 m/9 m) connectable to mounting block
    Max. cable length 50 m
    Vibration (55 to 2000 Hz) ≤ 200 m/s (EN 60068-2-6)
    Shock (11 ms) ≤ 400 m/s (EN 60068-2-27)
    Operating temperature 0 to 50 C
    Protection (IEC 60529) IP 53 when installed according to the mounting instructions
    IP 64 if compressed air is connected
    Weight 0.4 kg + 2.3 kg/m measuring length










    Mounting Instructions for the Heidenhain LS 176
