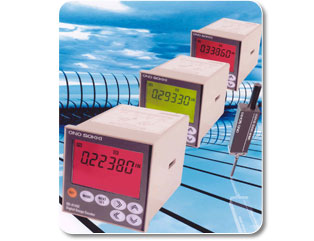

DG-4140E - Color Changing GO/NOGO Comparator

The DG-4140E digital gauge counter, featuring the color comparator display, is newly launched. An operator can easily recognize the comparison result monitoring changes of colors on the backlit of LCD, indicating red for either of the lower and the upper, and green in good.


  • Compatible with all past and present Ono Sokki Gage Sensors.
  • Optional outputs : RS-232C, MTI and Analog available
  • Engish / Metric switchable display

Range 0 to +/- 9.99995" / 0 to +/- 99.999 mm or 0 to +/- 99.9995" / 0 to +/- 999.99 mm (selectable from rear panel)
Output Serial BCD, Contact relays, Optional ouputs: RS-232C, MTI and Analog
Display 6 Digit LCD
Operating Temperature 32 to 104 F / 0 to 40 C
Power Supply 12 to 24 VDC; terminal strip input, or 12VDC AC adapter
Weight Approx. 300 g
Dimensions DIN size 72 (W) mm x 72 (H) mm 114 (D) mm
