SineSet® PERMANENT MAGNETIC SQUARING CHUCKS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
MC-66-S1 Permanent Magnetic Squaring Chuck in Use Vertically   MC-66-S1 Permanent Magnetic Squaring Chuck in Use Horizontally    SineSet Compatible


  • Designed to be used with a SineSet® series sine plate to form a magnetic sine plate or used separately as a squaring chuck.
  • Made with ceramic magnets for superior holding power that never fades.
  • All units are lubricated and sealed against dirt & liquids.
  • Includes removable handle, side and back rail.
  • The 9" x 9" models are square & parallel within 0.0004".  All other models are within 0.0003".


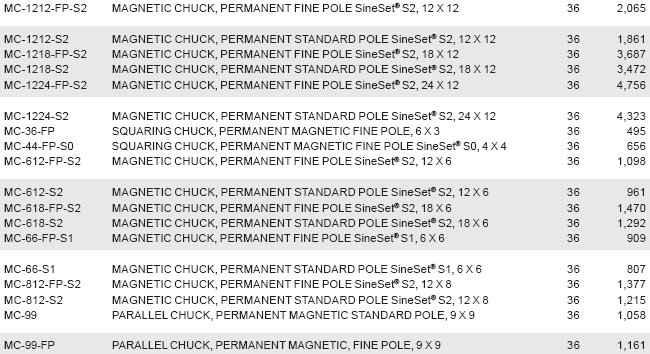

STANDARD POLE MODELS
(1/4" POLES & 1/8" SPACERS)


MODEL SineSet® SERIES LENGTH WIDTH HEIGHT WT(#)

MC-66-S1

 1 6" 6" 2-5/8" 21
MC-99* n/a 9" 9" 2-5/8" 49



FINE POLE MODELS
(1/8" POLES & 1/8" SPACERS)


MODEL SineSet® SERIES LENGTH WIDTH HEIGHT WT(#)
MC-36-FP*
MC-44-FP-S0
MC-66-FP-S1
MC-99-FP* 		n/a
0
1
n/a		 6"
4"
6"
9"		 3"
6"
6"
9"		 2-5/8"
2-5/8"
2-5/8"
2-5/8"		 13
12
25
53


Items marked with * are NOT SineSet® compatible.
