CUSTOM HEXAGONAL PALLET FIXTURES

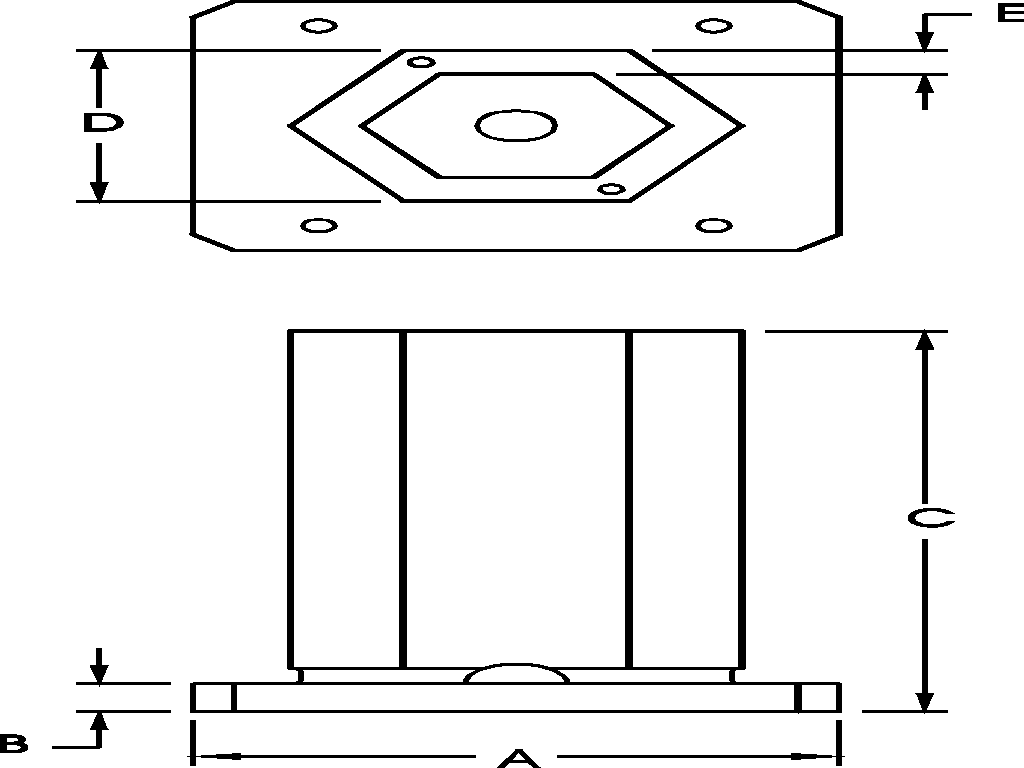

| Using the labeled dimensions in the
diagram above, fill in the dimensions required for your custom pallet fixture. Use
the notes area at the bottom for any explanations you feel are needed to complete the
description of pallet fixture you want us to build. Be as accurate and
detailed as you can. If you require a special shape or hole pattern, please e-mail
us at sales@auto-met.com and attach a drawing of
your part. Standard Construction: (1) Made from one piece, class 40 cast iron, (2) Base and sides milled flat, square & parallel to 0.001" in 12", (3) Base can have DIN or JIS mounting holes. |
