CUSTOM OCTAGONAL PALLET FIXTURES

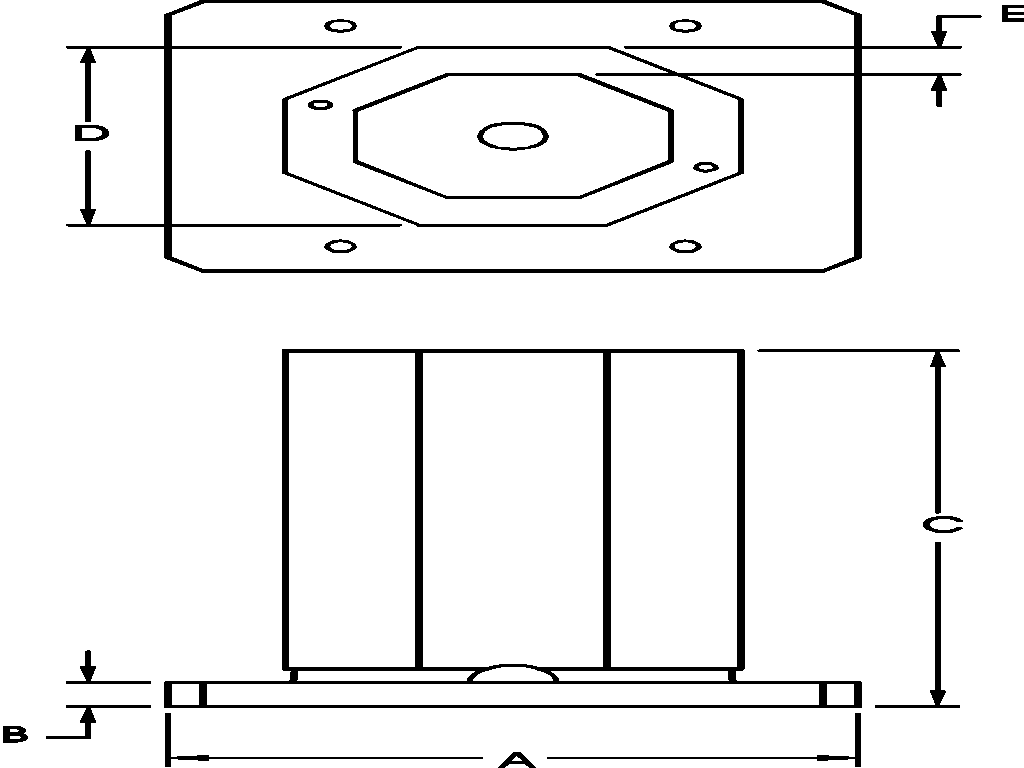

Using the labeled dimensions in the diagram above, fill in the dimensions required for your custom pallet fixture.  Use the notes area at the bottom for any explanations you feel are needed to complete the description of  pallet fixture you want us to build.  Be as accurate and detailed as you can.  If you require a special shape or hole pattern, please  E-mail: sales@auto-met.com
Standard Construction:  (1) Made from one piece, class 40 cast iron,  (2) Base and sides milled flat, square & parallel  to 0.001" in 12",   (3) Base can have DIN or JIS mounting holesl.

DIMENSION

SIZE (Specify mm or in)

A


B



C


D


E


Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com
