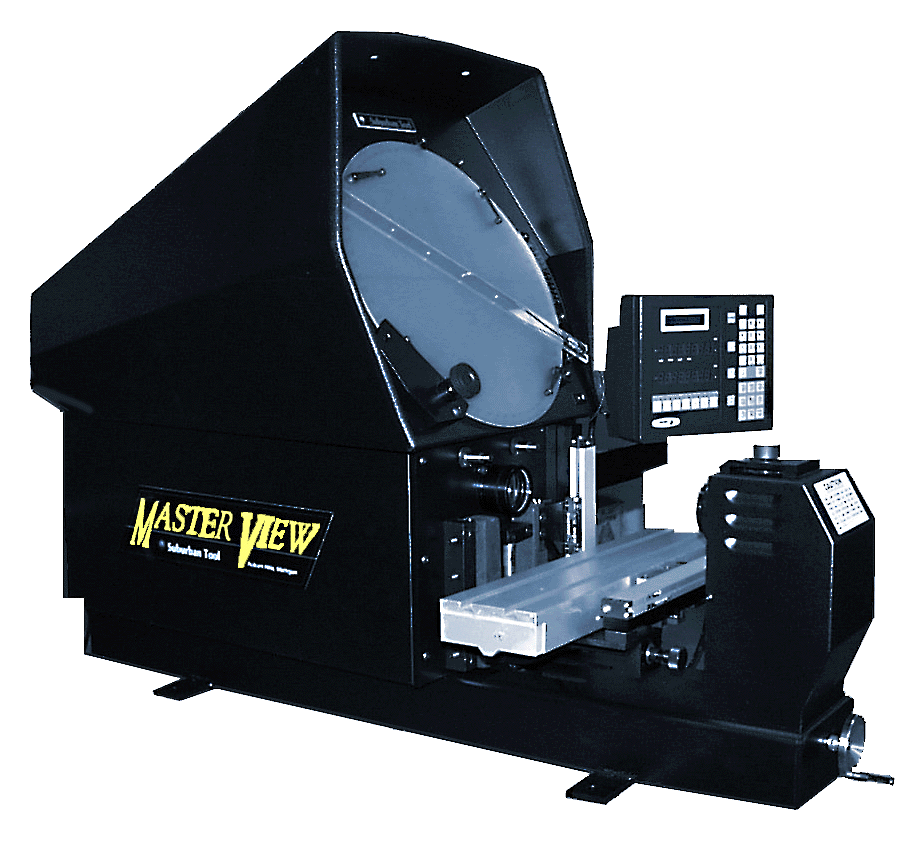

MV-14-FD MASTER-VIEW
14" OPTICAL COMPARATOR

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

  • Fagor NV-200 3-axis digital readout* with:

    • Geometric functions.

    • Easy calculation of distance, angle, intersection, radius, diameter, part skew, etc.

    • Output to printer or PC.

    • Display reads to 0.0001".

  • 1 micron glass scales.

  • Fiber optic edge detection.

  • 360 digital protractor.

  • Surface illumination through duplex fiber optics.

  • 3-Position rotary switch selects profile, surface, or  combination surface and profile illumination modes.

  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.

  • Ball way construction handles loads to 100lbs.

  • Single long life tungsten-halogen light source.

  • Heavy-duty monorail type, welded steel frame.

  • Rotary frosted glass screen with 90 crosslines and 360 protractor markings.

  • Screen-mounted overlay chart clips.

  • 10 power lens system.

  • Weighs 250 lbs.

  • Measures 48-1/2" long x 22-1/4" wide x 34" high.

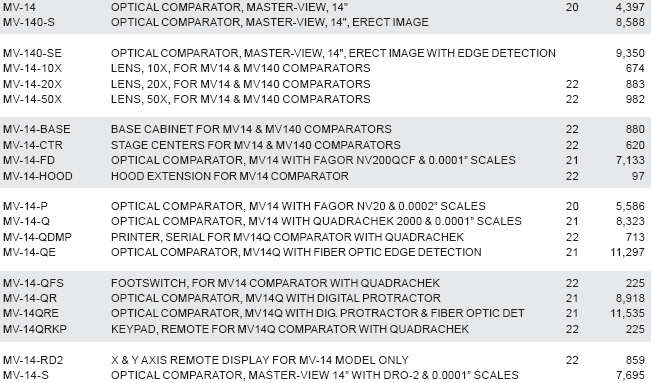

MV-14-FD Master-View 14" Optical Comparator
       * Digital readout supplied by Fagor Automation Corporation.
