ANGLE BLOCK SET

ANGLE BLOCK SET

  • Provides a quick, accurate & direct means for setting or checking angles.


  • Eliminates calculations to help avoid errors.


  • Blocks are furnished in 1 increments to 5, then in 5 increments to 30.


  • With the addition of the optional 1/4 and 1/2 blocks nearly any angle can be set in 1/4 increments.


  • 3" long by 1/4" thick hardened steel.


  • Precision ground to 0.0001" per inch (equates to 21 seconds at 1 & 16 seconds at 30).

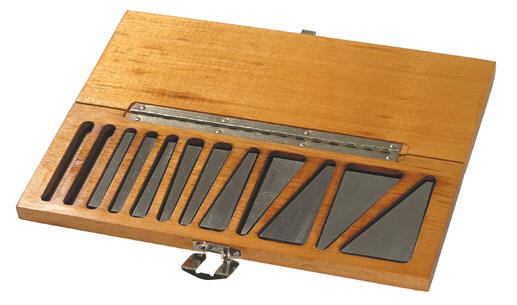

  • Sets furnished in fitted wooden case.


  • Individual replacement blocks available.



MODEL # DESCRIPTION WT (#)
SETS
AB-10-ST Set of 10 Angle Blocks 3
AB-12-ST AB-10-ST plus
AB-QTR & AB-HLF
6
INDIVIDUAL REPLACEMENT BLOCKS
AB-1 Individual 1 Block 1
AB-2 Individual 2 Block
AB-3 Individual 3 Block
AB-4 Individual 4 Block
AB-5 Individual 5 Block
AB-10 Individual 10 Block
AB-15 Individual 15 Block
AB-20 Individual 20 Block
AB-25 Individual 25 Block
AB-30 Individual 30 Block
AB-HLF Individual 1/2 Block
AB-QTR Individual 1/4 Block




Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
