MASTER-SINE™ COMPOUND SINE PLATES
 FORMERLY BY EX-CELL-0 / ROBBINS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
  • Master-Sine™ compound sine plates provide a sturdy and accurate way to grind or measure angles.

  • Hardened steel top plate has tapped holes for use with clamping devices.

  • The roll bar is made from hardened steel, ground and lapped for straightness and roundness.

  • Swivel block provides full face contact with gage blocks keeping them securely in place.

  • Exclusive locking device inside the hinge roll provides a positive lock with an expanding action. Both screws lock toward the front of the unit, pulling the top plate down on the set-up gage blocks without distortion. Hinge is made from hardened steel, ground and lapped.

  • Angular accuracy of set-ups is guaranteed to be within 5 seconds of arc up to 15°, 10 seconds up to 30° and 15 seconds up to 45°.

  • Side and back rail included.
A-5-SP MasterSine Compound Sine Plate

A-5-SP

A-10-SP MasterSine Compound Sine Plate

A-10-SP

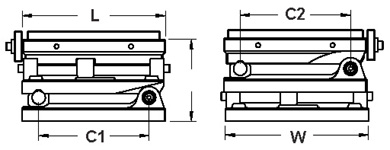

MODEL # L W H C1 C2 SQUARE &
PARALLEL		 WT(#)
A-5-SP 6-1/2" 6-1/2" 3-3/4" 5" ±0.0001" 5" ±0.0001" 0.0002" 29
A-10-SP 7-3/4" 12-1/2" 4-5/8" 10" ±0.0001" 0.0003" 77
A-15-SP 6-3/4" 18-1/4" 5-3/4" 15" ±0.00015" 0.0004" 144
