MAGNA-SINE COMPOUND SINE PLATES
FORMERLY BY EX-CELL-0 / ROBBINS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

A-5-MS Magna-Sine Magnetic Compound Sine Plate
A-5-MS
A-10-MS Magna-Sine Magnetic Compound Sine Plate
A-10-MS
  A-15-MS Magna-Sine Magnetic Compound Sine Plate
A-15-MS

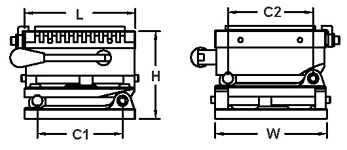

Magna-Sine Magnetic Compound Sine Plate Drawing
  • MAGNA-SINE magnetic sine plates are equipped with extremely powerful ceramic magnet chucks.  Having stationary magnets in the top plate and a movable magnet core, these chucks provide an average holding power of up to 100 pounds per square inch. This is nearly twice the holding power of a standard chuck!


  • The chucks provide maximum holding of both small & large parts due to a combination fine / standard pole spacing.


  • The swivel block provides full face contact with gage blocks keeping them securely in place.


  • The gage block & hinge rolls are made from hardened steel, ground and lapped for straightness and roundness.

  • An exclusive locking device inside the hinge roll provides a positive lock with an expanding action. Both screws lock toward the front of the unit, pulling the top plate down on the set-up gage blocks without distortion.


  • The angular accuracy is guaranteed to be within 5 seconds of arc up to 15, 10 seconds up to 30 and 15 seconds up to 45.


  • Side and back rails are included.


  • Available hinged as STANDARD (as shown) or OPPOSITE-HAND.

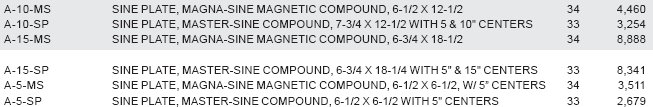

MODEL # L W H C1 C2 SQUARE &
PARALLEL
WT(#)
A-5-MS 6-1/2" 6-1/2" 5-1/4" 5" 0.0001" 5" 0.0001" 0.0002" 40
A-10-MS 6" 12" 6-1/8" 10" 0.0001" 0.0003" 85
A-15-MS 18-1/4" 7" 15" 0.00015" 0.0004" 165


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!




Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
