SINE VISES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

SV-337
SV-337 Sine Vise
  • Provides a quick and accurate means of holding a workpiece at an angle for grinding or inspection.

  • Angled center channel provides extra holding capacity.

  • Solid, one-piece body.

  • Made from steel, hardened to Rc 58-62.

  • Movable jaw pulls into base at 45 to 60 to insure maximum holding power and hold down force, eliminating tilting and lifting.

  • Dual 0.200" minute steps built into the gage roll allow setting small angles with standard gage blocks.

  • SV-337 models have small horizontal and vertical vees in the movable jaw and a ratchet mechanism with notched pockets and a one-piece drawbar.

  • One locking strap included with each sine vise.
Sine Vise Drawing

MODEL # SineSet
SERIES
L W H J JAW
CAPACITY
C SQUARE &
PARALLEL
WT(#)
SineSet COMPATIBLE

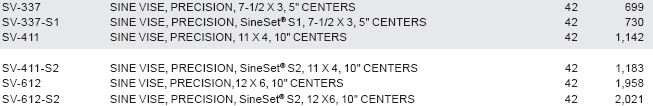

SV-337-S1 S1 7-1/2" 3" 3-5/8"   4-3/4" 5.000" 0.0002" 0.0002" 17
SV-411-S2 S2 11" 4" 4-5/8"   7" 10.000" 0.0002" 0.0003" 39
SV-612-S2 12" 6" 5-1/8"   8" 60
 NOT SineSet COMPATIBLE
SV-337 -- 7-1/2" 3" 3-5/8"   4-3/4" 5.000" 0.0002" 0.0002" 17
SV-411 11" 4" 4-5/8"   7" 10.000" 0.0002" 0.0003" 39
SV-612 12" 6" 5-1/8"   8" 60
