MATCHED PAIRS
OF
2-WAY STEEL PARALLELS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

TWP-019 Matched Pair of 2-Way Steel Parallels
TWP-019





  • Made of tool steel, hardened to Rc 58-62 and ground in matched pairs on two sides.


  • Provides an economical alternative to 4-way ground parallels, when only two parallel sides are required.


  • Size tolerance of the ground height is 0.001", while being held to a total of 0.0001" between the pieces of a matched pair.


  • Total parallelism over the 6" length is 0.0001".


MODEL # LENGTH WIDTH GROUND
HEIGHT
WT (#)
TWP-001 6" 1/4"

3/8"

1
TWP-002 7/16" 1
TWP-003 1/2" 1
TWP-004 9/16" 1
TWP-005 5/8" 1
TWP-006 11/16" 1
TWP-007 3/4" 1
TWP-008 13/16" 1
TWP-009 7/8" 1
TWP-010 15/16" 2
TWP-011 1" 2
TWP-012 1-1/16" 2
TWP-013 1-1/8" 2
TWP-014 1-3/16" 2
TWP-015 1-1/4" 2
TWP-016 1-5/16" 2
TWP-017 1-3/8" 2
TWP-018 1-7/16" 2
TWP-019 1-1/2" 2
TWP-020 1-9/16" 2
TWP-021 1-5/8" 2
TWP-022 1-11/16" 2
TWP-023 1-3/4" 2
TWP-024 1-13/16" 2
TWP-025 1-7/8" 2
TWP-026 1-15/16" 2
TWP-027 2" 2

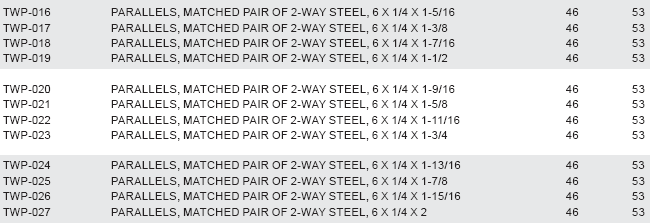

**See Below for Pricing
SETS OF MATCHED PAIRS
OF
2-WAY STEEL PARALLELS

TWP22-SET 22 Pair Set of Matched 2-Way Steel Parallels
TWP22-SET

TWP9-SET-A

  • Includes matched pairs 6" long x 1/4" wide in 1/16" height increments.


  • Furnished in a wooden holder, marked with sizes.


MODEL # PAIRS PER SET SIZE RANGE WT (#)
TWP9-SET-A 9 3/8" through 7/8" 9
TWP9-SET-B 15/16" through 1-7/16" 13
TWP9-SET-C 1-1/2" through 2" 18
TWP22-SET 22 1/2" through 1-13/16" 30









Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
