MV-14-S MASTER-VIEW
14" OPTICAL COMPARATORS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

  • Suburban's own MV-14-DRO2 3-axis digital readout with:

    • Part view to show the relationship between all part features.

    • 5.7" LCD screen.

    • Direct measurement of circles, arcs, angles, points, lines, distance, perpendicularity, parallelism and slots.

    • Part programming.

    • Auto-enter, looping and auto-finish.

    • 360 digital protractor.

    • Multiple languages.

    • Output to PC or printer.

    • Metric / inch conversion.

    • Skew capability.

    • Display reads to 0.0001".

  • 1 micron glass scales.

  • Surface illumination through duplex fiber optics.

  • 3-Position rotary switch selects profile, surface, or  combination surface and profile illumination modes.

  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.

  • Ball way construction handles loads to 100lbs.

  • Single long life tungsten-halogen light source.

  • Heavy-duty monorail type, welded steel frame.

  • Rotary frosted glass screen with 90 crosslines and 360 protractor markings.

  • Screen-mounted overlay chart clips.

  • 10 power lens system.

  • Weighs 250 lbs.

  • Measures 48-1/2" long x 22-1/4" wide x 34" high.

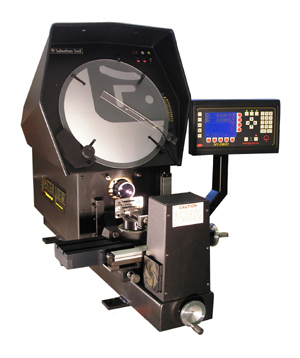

MV-14-SE Master-View 14" Optical Comparator
MV-14-SE

  MV-14-SE MV-14-S with fiber optic edge detection.
