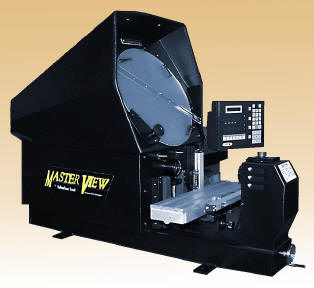

MASTER-VIEW DELUXE™

14" OPTICAL COMPARATOR

Master-View Deluxe™ includes all the standard features of the Master-View™


PLUS these
additional features:

  • FAGOR NV-200 QCF.

  • Full-featured 3-axis QC readout with geometric functions.

  • Easily calculates distance, angle, intersection, radius, diameter, part skew, etc.

  • Feature construction.

  • Output to printer or PC.

  • Fiber optic edge detection and a 360° digital protractor-both STANDARD.

  • 5 micron glass scales.

  • .0001 resolution.

MODEL MV-14FD

$7,995*

Complete and ready to use!

Optional Accessories for the MASTER-VIEW DELUXE™

PART # DESCRIPTION PRICE*
MV-14-20X
MV-14-50X
MV-14-BASE
MV-14-CTR
RRV-473
MV-14-VB
MV-14-RD2
 20X Lens
50X Lens
Cabinet base
Stage centers
Rotary base vise
V-block
X & Y Axis Remote LED Display (Includes Cables and Mounting Hardware)
 $624.00
866.00
739.00
520.00
612.00
226.00
589.00

OVERLAY CHARTS
PART # DESCRIPTION PRICE*
OC-1 (specify 10, 20 or  50X with part #)
OC-6
OC-2  (specify 10, 20 or  50X with part #)
OC-29  (specify 10, 20 or  50X with part #)
OC-10  (specify 10, 20 or  50X with part #)
 Combination grid / radius
Radius
Grid
Screw thread
Radius / angle
 $150.00
133.00
133.00
133.00
133.00

Special charts available, prices on request.
* PRICES SUBJECT TO CHANGE WITHOUT NOTICE
