OCTAGONAL COLUMN PALLET FIXTURES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

TSO Type Octagonal Column Pallet Fixture Drawing
  • Tombstone fixtures with 8 mounting surfaces are ideal for high part volume applications.

  • Made from one-piece, stress-relieved, class 40 cast iron.

  • Base and sides milled flat, parallel, and square to 0.001" in 12".

  • DIN mounting standard, JIS mounting optional.

  • All have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.

  • Available standard as plain milled or custom made with your own hole pattern.

  • A large number of standard size castings in stock.


TSO Type Octagonal Column Workholding Fixture

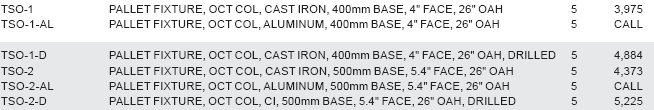

MODEL # A B C D E F G WT (#)
TSO-1 400mm 1-3/4" 26" 9-1/2" 1-1/2" 6.30" 6.30" 360
TSO-2 500mm 13" 1-3/4" 7.87" 7.87" 590







Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
