MV-14-Q MASTER-VIEW
14" OPTICAL COMPARATORS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

  • Metronics Quadra-Chek® 200 series digital readout* with:

    • Geometric functions.

    • Easy calculation of distance, angle, intersection, radius, diameter, part skew, etc.

    • Output to printer or PC.

    • Display reads to 0.0001".

  • 1 micron glass scales.

  • Surface illumination through duplex fiber optics.

  • 3-Position rotary switch selects profile, surface, or  combination surface and profile illumination modes.

  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.

  • Ball way construction handles loads to 100lbs.

  • Single long life tungsten-halogen light source.

  • Heavy-duty monorail type, welded steel frame.

  • Rotary frosted glass screen with 90° crosslines and 360° protractor markings.

  • Clip-on overlay chart clips.

  • 10 power lens system.

  • Weighs 250 lbs.

  • Measures 48-1/2" long x 22-1/4" wide x 34" high.

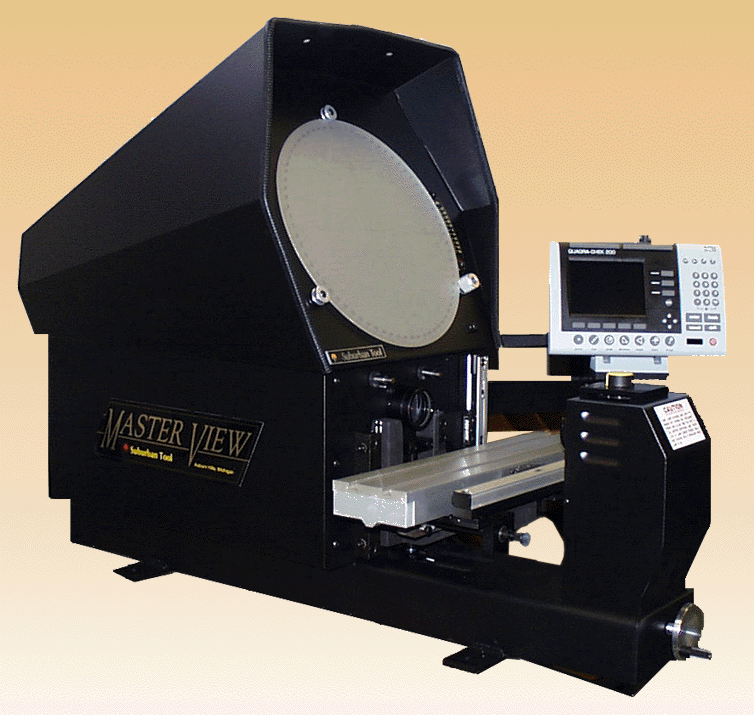

MV-14-Q Master-View 14" Optical Comparator

MV-14-Q


Additional MV-14-Q Models Availalble:


  MV-14-QE MV-14-Q with fiber optic edge detection.
MV-14-QR MV-14-Q with digital protractor.
MV-14-QRE MV-14-Q with fiber optic edge detection and digital protractor.

       * Digital readout supplied by Metronics Incorporated.
