V-BLOCKS
NO. 9128 - 9130 SERIES

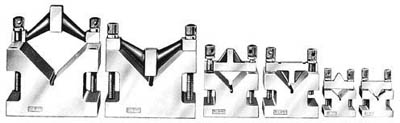

Taft-Peirce V-Blocks offer a quick, positive means of holding work for layout, machining and inspection. Reversible steel clamps provide true tangential contact on cylindrical work, and, on Style No. 9129 and 9130 V-Blocks, they may be swung aside or slipped off entirely for fast work insertion and removal. Style No. 9128 V-Block clamps have through holes only. Blocks like on sides or ends without interference from clamps.
SPECIFICATIONS
These V-Blocks are made of high quality alloy steel, scientifically heat treated for maximum stability and hardened for wear resistance. All sizes are furnished in pairs within the tolerances stated and numbered for identification. Each block is provided complete with one clamp and two clamping screws.
TOLERANCES
| Commercial Class |
 |
 |
| Style No. | Overall Dimensions | Maximum Work Holding Capacity | Approx. Weight Per Pair | Price | |||
| Length | Width | Height | Individual | Pair | |||
| 9128 | 1-3/8" | 1-3/8" | 1-1/8" | 3/4" dia. | 1 lb. | $163 | $271 |
| 9129 | 2-1/8" | 2-3/8" | 1-7/8" | 1-1/2" dia. | 4 lbs. | $256 | $426 |
| 9130 | 2-7/8" | 4" | 2-7/8" | 3" dia. | 14 lbs. | $342 | $571 |
Extra clamps and clamping screws available upon request.
For additional data, see Reference, notes 1,2,7 and 8.
