Technical Specifications

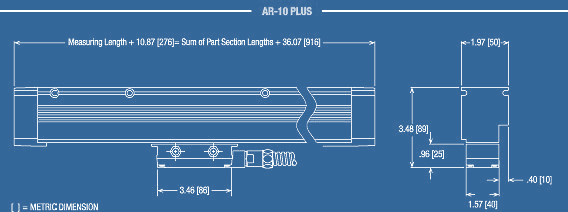

AR-10 PLUS dimensions


ENCODER

AR-10 PLUS

Resolution

5µm
(.0002")

Accuracy (at 20° C)
  µm, ±, in any 1000mm(40")


10



Signal Output

Digital

Scale Principle

Optical/Steel Tape

Maximum slew speed (in/sec)
  at 10° C to 30° C
  at 0° C to 10° C and 30°C to 40°C

40
40

Operating Environment
  Temperature
  Humidity

0° to 40°C
25% to 95% (non-condensing)

Cable Material

Vinyl-coated Armor

Cable Length

10 ft

Measuring Lengths (in)

128"-773"

Reference Mark Interval

1 (Placeable)

Endcaps

Plastic

Sealed Reading Head Electronics

Yes

Lipseal Material

Recessed
Interlocking
Polyurethane


ELECTRICAL SPECIFICATIONS Digital

electrical diagram
IOL = (Low level output current) = -20mA
VOL = (Low level output voltage)< 0.51Vdc

Light Source LED (Light-emitting diode)
Operating Voltage (VDC) 5.1 ±0.1
Operating Current (Max. mA) 140
Differential Output Signals (incremental) (TTL) Two square-wave voltage signals, channels A and B, in 90°  quadrature relationship
Reference Mark
(TTL level)
One square-wave pulse


DIGITAL PIN-OUTS AND OUTPUT SIGNALS

 DE-9P Connector

DE Pin Signal DE Wire Color
1 No Connection
2 Channel A + Green
3 Channel A - Yellow
4 Channel B + Blue
5 Channel B - Red
6 Ground (power supply and signal return) White
7 Supply Voltage Brown
8 Channel R + (Reference Mark) Pink
9 Channel R - (Reference Mark) Gray
  Shield Drain
