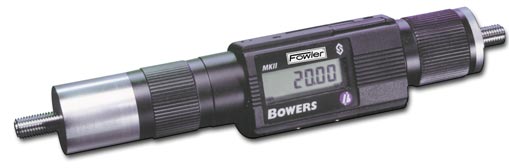

Digi-Thread Measuring System

Fowler/Bower's new electronic Digi-Thread allows verification of screw thread diameter and digital thread depth in one operation. Thread members are available for the most common ANSI & ISO sizes.

Features include:

Interchangeable GO/NOGO thread members
Direct RS-232 Output for SPC collection
Resolution: .00005"/.001mm
Preset from front face or 1st thread start
Direct IN/mm Conversion
Special thread forms are available upon request
Range: Ansi #5-5/8" and ISO M3-M16
Depth: Minimum 3 times major thread diameter
Quick and easy to use electronic system
Includes Fitted Case



If you would like more information or a flyer on our Digi-Thread System, simply fill out our Information Request Form, or contact our office. Click here to view PDF - Right click to download
