PB - MIL
Manual indexable Probe Body

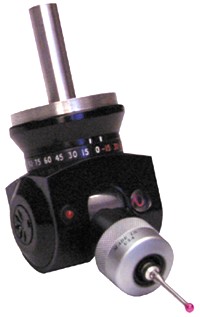

Show with Probe P1-5A (not included)

Fowler's new PB-MI is a universal manually indexable CMM Probe body. Supplied with a internal M8 thread it can accept nearly any touch probe. The unit can rotate through 360° in the B axis and 0-90° in the A axis - in 15° increments for a total of 168 repeatable positions.

Made in the USA, the PI-MI's ability to accept standard M8 threaded touch trigger probes make it a very cost effective and versatile unit - All at a price well below the competition!


Fowler PB-MI Probe Body Features:

Compatible with Any M8 Threaded Touch Probe!
A-Axis Indexing 0-90° in 15° increments

B-Axis Indexing: ±180° in 15° increments (360°)
Index Position Repeatability: 1.5um
Probe Status Indicator: 1 Red LED
Probe Mounting: M8 Socket
Shank mounting: 3/8", 14mm, 20mm, Specials
Output: TTP compatible (Standard)
Connector: 5 Pin DIN (180°)
Supplied in Molded Storage Case


Front view of PB-MI showing A and B axis indications and probe status LED. A 3/8" quill shank is shown mounted

Left Side view of the
PB-MI with a P1-5A touch probe mounted. Note the
5 pin DIN connector for host cmm hookup.
(touch probe & styli not included)

If you would like more information or a flyer on the CMM Probes, simply fill out our Information Request Form, or contact our office. Click here to view PDF - Right click to download
