Wyler Radio-Module Levels

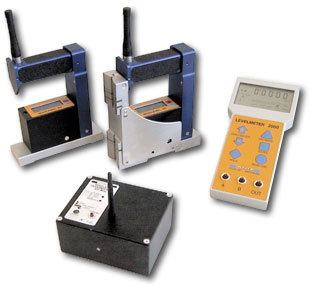

With Fowler/Wyler's new Radiomodule, precise inclination measurements can be performed without the need for cables.

The data is radio transmitted faultless from the instrument to the receiver module respectively to the Levelmeter 2000 or Levelmeter "Light".

From the Levelmeter or Levelmeter Light, transmission is done in the conventional way via RS232 cable. The Radiomodule can be supplied with new instruments or as an upgrade set for existing instruments of the NT family levels or Zerotronic sensors.

RadioModule Specifications:

Number of channels

Channel width 400 khz
Frequency 902 mhz
Radio power output 2 mw
Modulation FSK (frequency shift keying)
Power 2 x 1.5V Alkaline Batteries
  Size C (120 Hours)
RS-232 Output 9600, N, 7, 2

If you would like more information or a flyer on our Wyler Radio-Module, simply fill out our Information Request Form, or contact our office. Click here to view PDF - Right click to download
