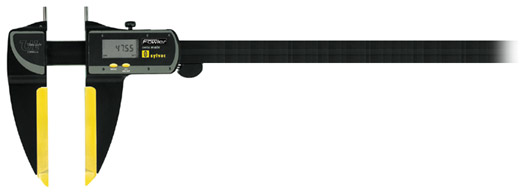

Ultra-Light Mk III Calipers

Fowler/Sylvac's new light-weight heavy-duty electronic digital calipers include sizes up to 60"(1500mm) and resolution of .0005"(.01mm). This has been achieved by designing a well-balanced instrument utilizing state-of-the-art material technology.

Functional parts are made of the latest wear-resistant materials. Hollow section aluminum beam reinforced by two stainless steel guides. This system assures perfect guidance and protects the beam against shocks. These Calipers offer many advantages over conventional calipers: Lightness improves measuring results. Measuring pressure control for improved repeatability. All work contact faces are titanium-coated on hardened steel or are solid carbide. Fixed left jaw increases rigidity.

The Fowler Ultra-Light Mark IV uses the newly patented Sylvac Inductive Measuring System which expands on the old capacitive system by providing moisture immunity and increased functionality. Old systems would typically have to dry out if they were exposed to coolants or other shop hazards, but the new system can take spray and exposure to due to it's IP-54 Rating. This eliminates costly downtime and increases measuring productivity.

A wide variety of accessory anvils are available to facilitate special measuring such as grooves, slots, splines and more. Click the images to zoom in...

Fowler Ultra-Light Mk III Features:

Internal and external measuring - 2 presets
Patented Sylvac Inductive System
Direct RS-232 output to computer or printer

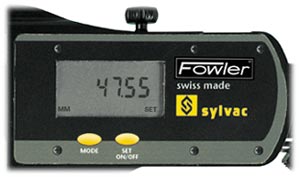

Large LCD Display Size
Resolution: .0005"/.01mm
Repeatability: 1 Digit
Direct IN/mm Conversion
Range: 12", 24", 40" and 60"
Hold feature freezes display for viewing
Protected to IEC529 IP54
Includes Fitted Wooden Case



If you would like more information or a flyer on our Ultra-Cal Mark IV Calipers, simply fill out our Information Request Form, or contact our office. Click here to view PDF - Right click to download
