The «Vectra & Mestra-Touch» height measuring instruments are of universal use in any production field. They are the result of 30 years of experience in development and manufacturing. This experience makes it possible to introduce a product which combines ergonomic design with new technology. The reliable concept is a reference for durability. Ease of use and quick performance of all required measuring tasks allow unlimited application in any manufacturing area. The new measuring system guarantees optimum measurement accuracy and is as well insensitive to environmental influences.

The «Vectra & Mestra-Touch» instrument offers various possibilities of application such as measuring of heights, depths, diameters and centerline distances, checking of squareness deviation and angles and tolerance limits indication. Additional functions such as the 2-coordinate measuring system, programming of measuring sequences, statistical analysis of memorized values and display of the environmental temperature extend the measurement capability range of 300, 600 and 1000mm.

New innovations
The instruments comprise quite a number of new innovations: An extremely resistive double measuring carriage, a clearly defined color touch-screen display unit, optimum repeatability of measurements obtained by a motorized probing system as well as an entire digital measuring system.

TRIMOS Embedded Technology

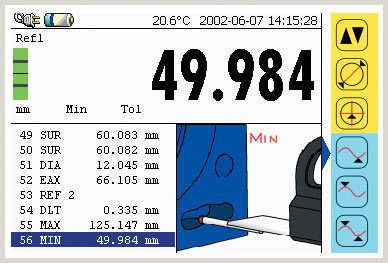

	«TRIMOS Embedded Technology» leads the way in offering the best user experience. All measuring and user functions are clearly displayed on the large bright LCD screen. Graphic help as well as on-line instructions guide the operator through most of the measuring functions.

Ergonomic design
The operating handle for the displacement of the instrument, provided with programmable function keys, has been designed for optimum operator comfort. The entire system floats on a air cusion to prevent operator fatiuge.

Vectra & Mestra-Touch Specifications:
Available Ranges: (with 2nd Probe Holder):	0-12"/305mm | 0-24"/610mm | 0-40"/1016mm 0-22"/567mm | 0-34"/872mm | 0-50"/1278mm
Resolution:	0.00001"/0.0001" (0.0001mm/0.001mm)
Measuring Pressure:	Approx. 0.5 - 1.8 Newtons
Accuracy (STD):
Vectra:	2.5 +L(mm) / 400 µm
Mestra:	1.4 +L(mm) / 400 µm
Repeatbility:	0.00005" (0.001mm) (0.002mm on Diam.)
Output Type:	RS-232 C (Bi-Directional)
Motor Measuring Speed:	6"/sec. (150mm/sec.)
Display:	Color Touch-Screen w/Embedded Technology
Interface Connections:	2x RS232-C, 2x USB (A and B)
Operational Temperature:	+10° to +40° C
Power Supply:	Rechargeable Battery Pack (8 Hours)
Total Height :	25.4"/645mm | 37.4"/950mm | 53.4"/1357mm
Weight:	16kg | 19kg | 23kg
