call for details

  MC150 / MC211 - Single Axis Digital Readout

6 digit, 14mm high LED Display

Line Driver, Push-Pull or SSI encoder input signal (counting frequency: 300kHz)

4 inputs (datum, reset, tool offset & abs/inc) with 2 outputs

RS232 interface (optional)

Panel mount or free standing housing

Powered with 24Vdc, 24Vac, 115Vac or 230Vac




call for details

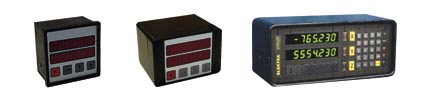

  MC221 / MC222 / MC322 - 2 and 3 Axis Digital Readout

6/8 digit, 14mm high LED Display

Free standing housing

Line Driver, Push-Pull or SSI encoder input signal (counting frequency: 300kHz)

Milling machine and lathe specific software

Powered with 24Vdc, 115Vac or 230Vac




call for details

  PS600L - Position Controller

LCD display, 4 lines, 20 characters each

Line Driver, Push-Pull or SSI encoder input signal (counting frequency: 20kHz)

3,000 address lines of program memory

+/-10V analog or 3 speed transistor output (on request)

10 function inputs and 8 outputs (24Vdc/600mA)

RS232 or CANopen interface

Powered with 24Vdc




call for details

  PS511 - Position Controller

8 digit, 14mm high LED Display

Line Driver, Push-Pull or SSI encoder input signal (counting frequency: 100kHz)

3,000 address lines of program memory

16 function inputs and 16 outputs (12 relays optional)

+/- 10V analog output or 3 speed transistor output

RS232 or RS485 interface

Powered with 24Vdc,115Vac or 230Vac
