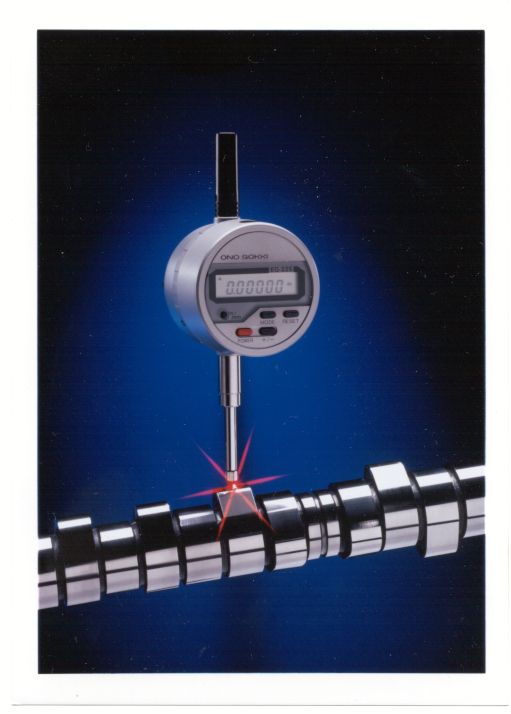

EG-225 English/Metric Digital Linear Gauge

The compact EG-225 digital linear gauge offers excellent performance at an affordable price.  The gauge conforms to AGD group II mechanical specifications, permits spindle speeds up to 20inch/sec, and features a 1 inch range and 50 millionths resolution (0.00005 inch).  The display can be set for English or metric readings.  Spindle measuring force can be adjusted to accommodate most applications.  A high speed serial output port is provided for easy integration with SPC data collection systems.



Features

  • English/Metric Units

  • Max, Min, & Range (1 rev TIR)

  • Zero, Absolute, & Preset Modes

  • Rechargeable Battery/ AC Power

  • Adjustable Measuring Force

  • High-Speed Serial Output Port



Model EG-225 Digital Linear Gauge
Measuring Range 1.0"/25mm
Resolution 0.00005"/0.001mm
Response Speed 20 in/s
Display 6 digit LCD with sign
Output Serial BCD
Measuring Force 150gf / 5.3 oz.
Power Supply

AC Adapter & Internal Rechargeable Battery

Operating Temperature 41 to 104F/5 to 40C
Weight 6.3oz. / 180g
Stem Diameter 3/8" (0.375")
Thread Size ADG 4/48"
Dimensions 4.4"(L) x 2"(W) x 1.5"(H)
Weight 6.3oz. / 180g
Stem Diameter 3/8" (0.375")
Thread Size ADG 4/48"
Dimensions 4.4"(L) x 2"(W) x 1.5"(H)



Standard Accessories

Optional Accessories

AA-970

PB-703

AA-968

AA-880



Finger Lifter

AC Adapter (100/120/220/240VAC)

Flat Back

Contact Tip



AA-971

AA-972

AA-813

AA-816

AA-889

ST-022

ST-004

AA-963B

AA-968-1

Top Lifter

Release Cable Adapter

Mechanical Release Cable

Air Release Cable

Contact Tip Set

Gauge Stand (4.7" height)

Gauge Stand (9.8" height)

Output Signal Cable

Flat Back
