Summit 36 and 50 Series Big Swing Lathes

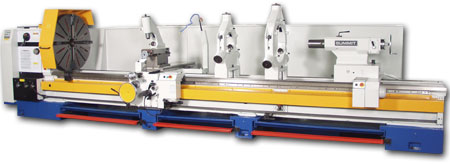

Summit 36, 40 & 50" Precision Engine Lathes
Summit's 36" thru 50" precision engine lathes combine the greatest combination of features available for a lathe in this size range, setting a new standard for machines in this class.

The precision engine lathes have just the right amount of engineering to afford simplicity of operation, coupled with plain and simple rugged reliability. In addition, built in safety features like the safety clutch in the apron that kicks out the feed and the feed/threading safety interlock eliminating the simultaneous engagement of the feed and threading motion, place these machine in a performance field of their own - unparalleled in performance.

Available in center distances from 80" to 400", the 36" thru 50" precision engine lathes have 38" to 52" swing over the bed, 23" to 37" swing over the cross slide, induction hardened and ground bedways on a fully ribbed closed grain cast bed, 26" wide for added rigidity.

Key Features:

  • Wide 27 1/2" bed
  • Hardened and precision ground bedways
  • 5-1/2" spindle bore
  • Three bearing headstock
  • Inch/metric threading
  • Removable gap
  • Available in 80" to 400" bed lengths
Specifications:

36" DC

40" DC

50" DC

Swing over bed 38" 42" 52"
Swing over cross slide 23" 27" 37"
Swing over gap 45" 49" 59"
Main Drive Motor 30 HP 30 HP 30 HP
