Summit 3UH Horizontal Mills

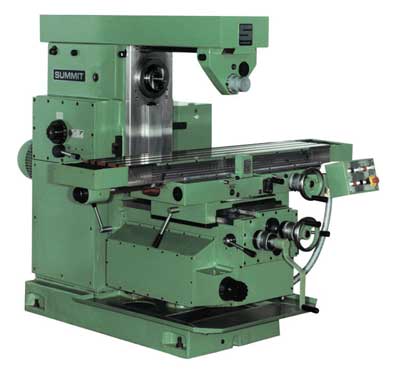

Summit 3UH Horizontal Milling Machines

SUMMIT #3 series milling machines offer high production accuracy due to their heavy construction and innovative design, which make them the ideal choice for job shops, production shops, repair and tool & die shops. These machines are successfully used for single piece jobs as well as series machining. The large choice of speed and feed steps provide optimum cutting conditions for ferrous and non-ferrous metals.

A few of the outstanding design features are: the alloy steel main spindle in thermally treated and precision ground then fixed on high accuracy bearings; the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table loads; and an automatic lube system ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these machines are designed for virtually uninterrupted operation

Key Features:

  • Semi-automatic cycling
  • Dual control of spindle speeds
  • Vertical attachment with drawbar (3UH & 3UHX)
  • Coolant pump and piping
  • Drawbar
  • Backlash eliminator
  • Universal table
Specifications: 3UH 3UHX
TABLE:
  Working surface
INCH METRIC INCH METRIC
12-1/2" x 59" 320x1500 mm 14" x 70-3/4" 355 x 1800 mm
  Swivel of table (L to R) +/- 45 +/- 45
CAPACITIES:
  Longitudinal travel - power / hand
39-1/4" / 39-1/4" 1000mm / 1000mm 51" / 51" 1300mm / 1300 mm
  Cross travel - power / hand 14" / 14" 355 mm / 355 mm 11-3/4" / 11/3/4" 300 mm / 300 mm
  Vertical travel  - power / hand 14-1/2" / 14-1/2" 370 mm / 370 mm 16-1/2" / 16-1/2" 420 mm / 420 mm
  Spindle to table - min to max 1" - 15-3/4" 25 - 400 mm/min 1" - 19-1/2" 25 - 500 mm/min
  Column to table center
  (min - max)
1" - 15-3/4" 215 - 540 mm/min 8-3/4" - 21-1/4" 225 - 540 mm/min
SPINDLE:

Taper
#50 NMT #50 NMT
  Spindle - (speeds) range (18) 32-1600 RPM (18) 32-1600 RPM
FEEDS:
  Number
18 18
  Longitudinal 1-50 IPM 25 - 1270 mm/min 1-47 IPM 25 - 1200 mm/min
  Cross 1-50 IPM 25 - 1270 mm/min 1-47 IPM 25 - 1200 mm/min
  Vertical 1-10 IPM 25 - 250 mm/min 1-9 IPM 25 - 230 mm/min
  Rapid traverse 120 IPM 3000 mm/min 106 IPM 2700 mm/min
MAIN MOTOR: 10 H.P. 7.5 kW 10 HP 7.5 kW
WEIGHT: 6725 lbs. 3050 KG 7500 lbs 3400 KG
Optional Powered Over Arm:

Spindle - (speeds) range
n/a n/a (12) 40 - 1800 RPM
  Over Arm Motor n/a n/a 5.5 HP 4 kW
  Spindle - travel/taper n/a n/a 4" / 50 NMT 100 mm / 50 NMT
  Swivel n/a n/a +/- 90
