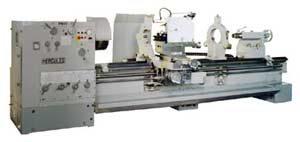

Hercules SPE 830 Series 32" Engine Lathes

Key Features:
  • Camlock spindle A2-11
  • Heavy walled hardened and ground spindle with 6.1" through-bore turns in stress-free precision tapered roller bearing system. Dial control gives 20 spindle speeds.
  • 20" wide bed engineered for rigidity, a massive casting with integral ways hardened for long service life Feed box cuts wide range of American Standard, Metric, Module and DP threads.
  • Pushbutton controlled rapid traverse, longitudinal or cross.
  • Simple, convenient controls for safer, faster operation.
  • Automatic oiling systems lubricate headstock, feed box and carriage.
  • Quality construction throughout, with hardened and ground Cr/Mo gears and alloy steel shafts mounted on ball or roller bearings.

Standard Equipment at no extra cost:

  • Gap beds with precision filler blocks.
  • Front mounted spindle stop/start, forward/reverse levers.
  • Automatic longitudinal stop systems, with 6 stops that sequentially disengage feed at predetermined points with repeatable precision.
  • Tailstock that can be coupled to the carriage, which allows using the tailstock for power drilling, reaming and boring applications.

SPECIFICATIONS

Swing over bed 32.7"
Swing over cross slide 22"
Swing over gap 43.7"
Length of gap (in front of faceplate) 12"
SUPPORT CAPACITY BETWEEN CENTERS WITH TWO CHUCKS
Without steady (lbs.) 5500
With one steady 7700
With two steady 9900
HEADSTOCK
Spindle speeds (number) range (12) 5 to 800 RPM
Spindle nose type A2-11"
Headstock Center #6MT
Hole through spindle 6.1'
QUICK CHANGE GEARBOX
Threads per inch (number) range (TPI) 80 (0.25 to 80)
Metric threads (number) range (mm) 44 (1 to 176)
Longitudinal feeds (number) range -IPR 114 (0.0022" to 0.6")
Cross feeds (number) range-IPR 114 (0.0007 to 0.017")
CARRIAGE & APRON
Cross slide travel 16.9"
Compound rest travel 7.8"
Carriage bearing on ways 26.5"
TAILSTOCK
Travel of barrel 8.7"
Diameter of barrel 4.13"
Tailstock of center #6MT
BED
Width of bed 19.4"
Depth of bed 19"
MAIN DRIVE MOTOR 25HP
DIMENSIONS H x W 70" x 68"
