Hydraulic Swing Beam Shear - Summit Machine Tool Manufacturing Corp

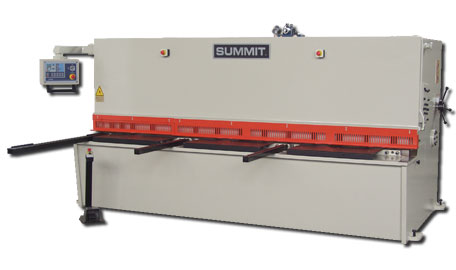

Summit® 10' x 1/4" Hydraulic Shear
The SUMMIT 10' x 1/4" Heavy Duty Swing Beam Shear is hydraulically operated giving complete overload protection and assuring the utmost stability. Operation is fast and simple with the single handle blade gap adjustment and front operated power back gauge. The sturdy proportions of the frame, table and swing beam assure complete rigidity under the most severe conditions.

Key Features:

  • Swing Beam Design -
    The swing beam design offers two big advantages: (1) precision guidance of the upper blade with zero maintenance, no slide ways to be greased or adjusted: and (2) the heavy duty backstop allows the cut material to drop freely without jamming.
  • Front Operated Power Back Gauge -

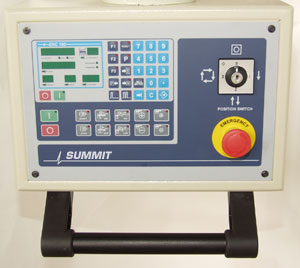

    The swing up back gauge provides infinite and accurate positioning for lengths to 39-3/8". It is equipped with an electronic digital readout for ease of operation.
  • Single Handle Blade Gap Adjustment
  • T-slotted squaring arm with disappearing stops
  • Complete hydraulic system

Specifications:

Item Inch Metric
Cutting Length 122" 3100 mm
Cutting Capacity (mild Steel) 1/4" 6 mm
Cutting Capacity (stainless) .166" 4.2 mm
Throat Depth 4-1/2" 115 mm
Back gauge Adjustment 39-3/8" 1000 mm
Main Drive Motor 20 HP 15 kW
