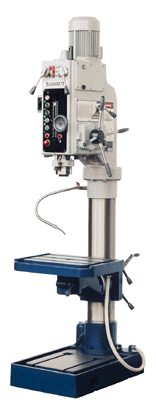

Summit Heavy Duty Vertical Drills

The Summit BHD series is a vertical drill with a heavy duty quill and spindle, geared head, power or manual feed, adjustable table and many other features that make these drills an indispensable machine in your operation. For increased productivity these drills have designed features like side mounted controls, front mounted switches, extra large table and base with T-slots, built in cooling system and state of the art electrics.

The engineering excellence, fine workmanship, materials and impressive specifications of the SUMMIT BHD series drills assure you of greater production and easy, trouble free operation for years to come.

Key Features:

  • Extra heavy duty cast iron construction
  • Adjustable tilting table
  • #5 Morse taper
  • Power or manual feed
  • Feed stop adjustment
  • Built in coolant system
Specifications: INCH METRIC
  Drilling capacity  (steel) 2 3/16" 55 mm
  Morse taper #5 MT
  Center Spindle to column 14-1/2" 370 mm
  Column diameter 7-7/8" 200 mm
  Coolant Pump 1/4 HP .2 kW
  Spindle motor 5.5 HP 4 kW
  Spindle travel 9" 230 mm
  Spindle to table 4" - 28 3/4" 100 -730 mm
  Spindle to base (max) 51" 1300 mm
  Speed range 9 speeds 54-1032 RPM
  Feeds 3 feeds .004 - 0.015 IPM
  Table size 20-1/2" x 23-3/4" 520 mm x 620 mm
  T-slots - 3 table 2 base 1" 25 mm
  Vertical travel of table 24-1/2" 625 mm
  Weight 1,903 lbs. 865 Kg
 Overall Dimension 41" x 22-1/2" x 98" 1041mm x 570mm x 2500mm

Call 800-654-3262 Today for more information and immediate delivery!
