When it comes to supplying special gaging, Universal can offer you an accurate and cost effective way to measure your specific application. With years of experience, every gage or special project we undertake exceeds customer expectation.

When you provide a part or print, and indicate the critical dimensions to be measured, we will provide a quotation for a turn-key, gaging system in a time frame to meet your requirements. We can provide solutions for static or dynamic measurements that include IDs, ODs, TIRs, parallelism, locations, or any other feature that you wish to maintain. We provide gage R&R (Repeatability and Reproducibility) studies to prove that the gage is capable
.

Applications
The Universal Pro-Fixture Series™ technology is suitable for industry production for turned machine parts manufacturing in;
• Aerospace • Automotive • Commercial • Electronic • Medical • Military • Machine Tools


Concept

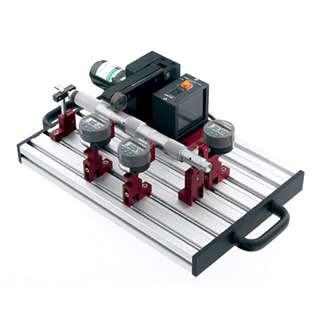

Universal Pro-Fixture Series™ is an adaptable and versatile gaging system made out of high-tensile, plated aerospace aluminum. Fixtures of all kinds and sizes can be assembled quickly using single components chosen from the large variety available. Modular design and extreme flexibility facilitate the adaptation to many different tasks in quality assurance for mass production, pilot production, tooling and prototypes. Outstanding quality standards, proven functionality, Cost-effective solutions - with these advantages the Universal Pro-Fixture Series™ system sets a new benchmark in measuring and clamping technology.

Advantages
• Measurement fixtures self-built using the building block principle
• Short response time for changing work pieces
• Flexible, cost-effective, turnkey gaging solutions
• Easily expandable, and assembled or disassembled at a later date
• Outstanding stability, resistant to bending
• T-slot geometric design allows rapid and parallel construction
• T-slots serve to assist in locating and guiding the modular components




Features
The Pro-Fixture Series™ bases with longitudinal slots provide the basis for accurately positioned fixtures and repeatable measurements. The fixtures can be configured according to individual requirements in combination with special holding and clamping elements for specific types of parts. This system offers the customer the opportunity to create inspection fixtures using the "do-it-yourself" principle by providing a modular system with re-useable components.
Many standard features, off the shelf components that can be assembled by the customer for a variety of general gaging applications.

Integrations

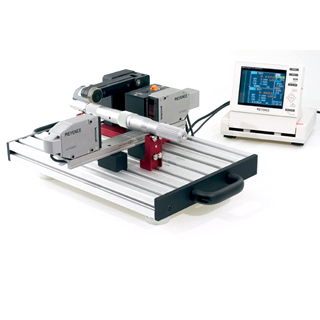

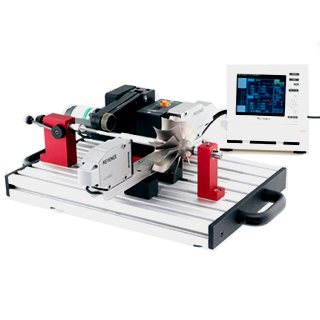

Universal Pro-Fixture Series™ provides gaging systems from simple benchtop stations to multifeatured measuring devices. Our products include gage design and build, standard modular gaging components and optional data collection systems. Direct gage interface options include: • Inductive Gage Sensors • Vision Systems • Displacement Sensors • (LVDT) Linear Variable Displacement Transducers • (SPC) Statistical Process Control • Laser Scan Micrometer
