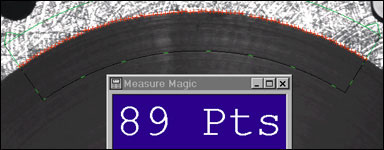

Measure Magic® To measure, simply probe points and click. Quadra-Chek metrology software detects, without operator intervention, the feature type being measured. With this patented feature, operators can inspect features without taking their eyes off the part, which speeds throughput and reduces user fatigue.
Datum Magic® Automate part alignment (level, skew and zero), the first step in any measurement. Complete the zeroing and alignment of complex parts automatically based on the entry of the minimum amount of probed features. An extension of the patented Measure Magic technology.
Advanced calculations Customize results fields for special measurement needs and complex calculations by embedding formulas (e.g., automatically calculate area or circumference dimensions with each circle measurement or perform compound calculations based on coeffecients extracted from multiple features).
Uncomplicated constructions Select two or more features to create intersection or constructions. Reduces operator effort by eliminating confusing construction menus.
Data Cloud Improves the presentation of measurement data with the graphic display of measured features that reinforce operator comprehension by visualizing complex data sets.
Alternate fits Quickly determine minimum and maximum fits for measured diameters with an intuitive graphical display. |
